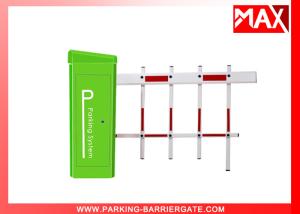

Solor Energy Optional Electric Boom Gates Serve Motor With Two Fence

Brand Name : MAX

Model Number : MX-88

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : Western Union, T/T, L/C/Paypal

Supply Ability : 2000 set/month

Delivery Time : 3-10 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Name : Parking barrier gate

Arm Type : Straight Articulated, Fence

Working Temperature : -40℃～+75℃

Color : Red, Orange, Blue, Black optional

Motor Rotational speed : 1400rmp

Frequency(Hz) : 50-60Hz

Contact Now

Solor Energy Optional Auto Boom Barriers Serve Motor Barrier Gate With Two Fence

MX-88 series serve motor barrier gate,combining permanent-magnet synchrounous serve motor(PMSM motor) with high quality aluminum alloy press forming housing & well-designed gear reducer,the motor features high power density,low noise,small vibration,high efficiency and fast response as special drive applied.Compared with traditional asynchronous motor,the serve motor has such advantages as higher efficiency,higher power factor,lighter,low temprerature rise,better power-saving,by which it improves power grid quality factor,and brings current power grid capacity into full play,thus save investment on power grid.The motor drive employees serve motion control algorithm to accurately position open/colse position and motion curve track through encoder,able to be widely use for expressway toll station,bus station,shopping mail,airport,hospital.,etc

Product Specifications

Arm Length	Max6M
Opening And Closing Time	0.3S,0.6S,0.9S,3S,4S
Rated Voltage	AC100V~AC264V,DC24V
Frequency	50Hz~60Hz
Motor Rated Power	50W,Max 100W
Working Environment	-40 ℃ ~85 ℃
Power	Standby≤8W,run≤100W
Housing Size(HWH*W)	342312959*2mm
Lifetime	More than 10 million operation time or 10 years
MTTR	<0.5Hrs
MTBF	>500 million operation times
Protection Degree	IP65
Relative Humidity	≦ 90%
Motorno-load speed	3000r/min
Remote Distance	≦ 100m
Output Torque	0.86N.M*140=120N.M
Running Noise:	<60dB
Net Weight	42.6KG

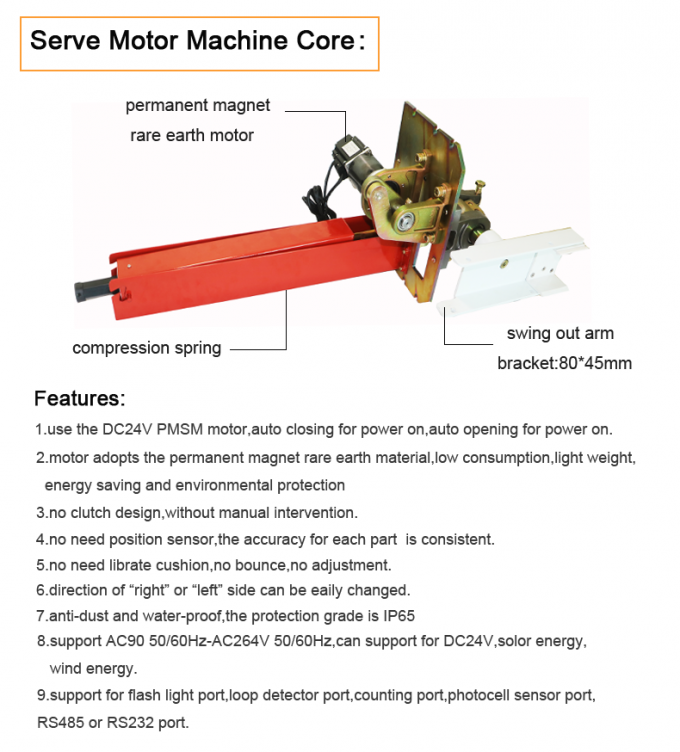

Machine Core Functions

RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.

- 1. Inquiry

Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request

-2. Quotation

Official quotation form with all clear specifications according to the order

-3. Invoice

Invoice will be issued once the quotation is confirmed.

-4. Payment

Payment shall be issued once the invoice issued. Full payment is acquired.

-5. Production

Bulk production shall be taking 15-25 working days.

-6. Delivery

by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
