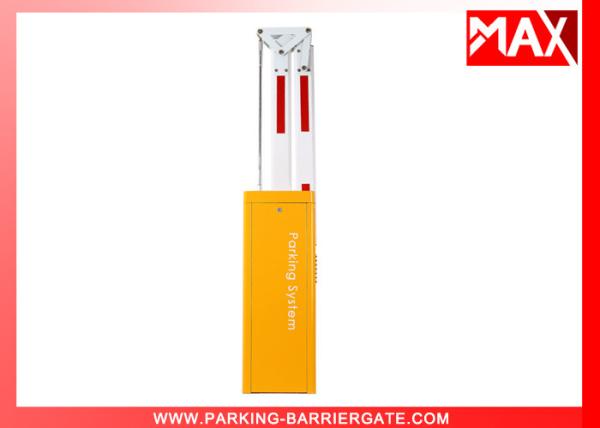

Road Safety Automatic Boom Barrier Access Control Traffic Barrier Systems
Specifications
| Model |
MX-30 |
| Working Temperature |
-40℃～+75℃ |
| Voltage |
220V±10%, 110V±10%, 50/60HZ |
| Rated power |
80W |
| Relative humidity |
≤90% |
| Remote control distance |
≥50m |
| Net weight |
50kgs |
| Speed |
1.8S,3S, 6S |
| Max boom length |
6 meters |
| Motor Rotational speed |
1400rmp |
| Protection Degree |
IP44
|
Advantages:
1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
Car Park barrier:
1. Automatic and Intelligent
2. Silent,heavy duty,steady, durable
3. Vehicle or pedestrian control
Each parking barrier will include:
1 pcs parking Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Optional Accessories:
1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
Packing & Shipping
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps;
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
Application:
Traffic access control for parking lots, toll gate, goods yard, railway crossing, commercial premise, apartment block access and so on.
