Details Information:

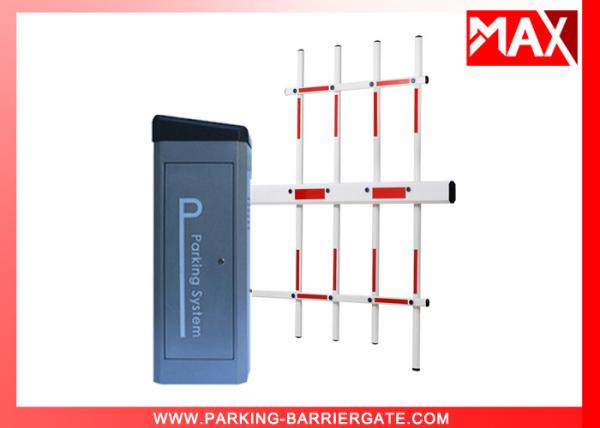

| 1 | Product Name | Malaysia Market Automatic Boom Gate Parking Barrier Gate with Three Fence Arm |
| 2 | Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| 3 | Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| 4 | Motor Power | 50W,max 100W |
| 5 | Boom Length | 2meter to 6meter(max) |
| 6 | Working Temperature | -40℃~85℃ |
| 7 | Housing Size | 342*312*959*2mm(L*W*H*TH) |
| 8 | Lifetime | >10 million times or 10 years |
| 9 | MTTR | <0.5hour |
| 10 | MTBF | >5 million times |
| 11 | Protection Grade | IP68 |
| 12 | Remote Controll Distance | ≤100 meter |
| 13 | Motor Speed | 3000 r/min |
| 14 | Relative Humidity | ≤90% |
| 15 | Running Noise | <50dB |
| 16 | Net Weight | 42.6KG |
| 17 | Application | Parking Lots, Toll Gates, Goods Yards, RailwayCrossings,Commercial Premises, Apartment BlockAccess |

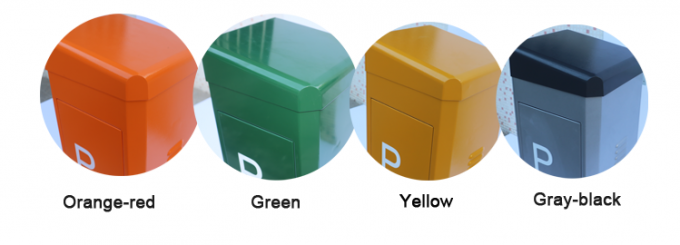

Optional Color:
Main Functions:
1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If
special requirement, manual operation is required when power off . Operating arm open and close by
hand also can be realized by setting up control board DIP switch, which ensure that the system can be
used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button, software or remote control to issue a gate arm up, the gate will give priority
to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication
module)
18. Anti-collision alarm signal interface.
19. Arm direction change is simple.
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality
FAQ:
1.Are you the manufacturer or trade company?
-------We're professional manufacturer who has our own factory in Shenzhen since 2007.
2.What is your biggest sadvantage?
----------Serve motor,support for AC and DC power,only us use this motor for barrier gate in China,rod and operation time can be adjusted,no limit switch,free-debbugging.
3.Why the price is higher than others?
-------This barrier gate combining permanent-magnet synchrous serve motor(PMSM motor),the technology is the mostt anvanced in China.At the same time,we can supply the more cheaper price barrier gate to meet different clients.
4.What's the MOQ?
-------Sample order for 1 set is supported.
5.What is your delivery time?
---------As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.
--------For OED order,it is 7-15 days after received your payment with 30 sets order quality.
6.What is thr terms of payment?
--------30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.
7.What is your Warranty?
--------Our Warranty is 2 year.
