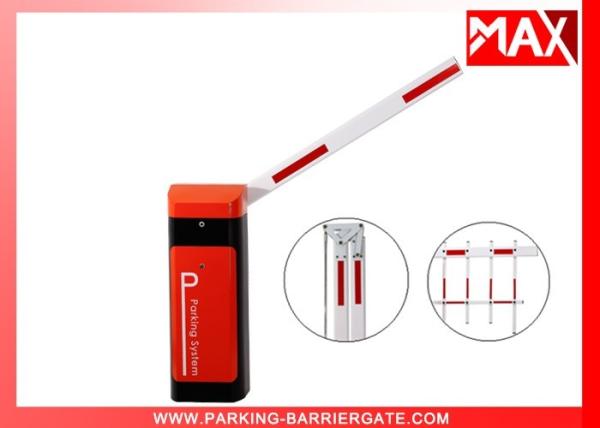

1.5M Cold Rolled Steel Sheet Electric Barrier Gate , Automatic Boom Barrier Access Car Park
MX-90 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:
Specifiction
| Model |
MX-90 |
| Working Temperature |
-40℃～+75℃ |
| Voltage |
220V±10%, 110V±10%, 50/60HZ |
| Rated power |
80W |
| Relative humidity |
≤90% |
| Remote control distance |
≥30m |
| Net weight |
50kgs |
| Speed |
1.8S,3S, 6S |
| Max boom length |
6 meters |
| Motor Rotational speed |
1400rmp |
| Protection Degree |
IP44 |
Features:
1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 2 meters to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell, Airwave switch, loop detector, LED light bar, toll gate system and output terminals for flashing light.
For the things that most customer want to know:
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
FAQ:
1. Are you manufacturer or Trade Company?
We are professional and leading BARRIER GATE manufacturer, founded in 2008.
2. What's the order process?
a. Inquiry--- The more information you provide, the suitable product we can provide for you! The information such as
the gate run speed, length of arm, power source or other specials you give us will be more appreciated.
b. Quotation---official quotation form with all clear specifications.
c. Sample confirmation---sample will be shipped out in 2 days.
d. Payment terms--- T/T 100% advance payment. PaypaL, Western union.
e. Production---mass production
f. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, paypal, western union
