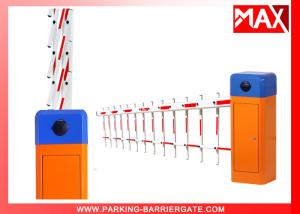

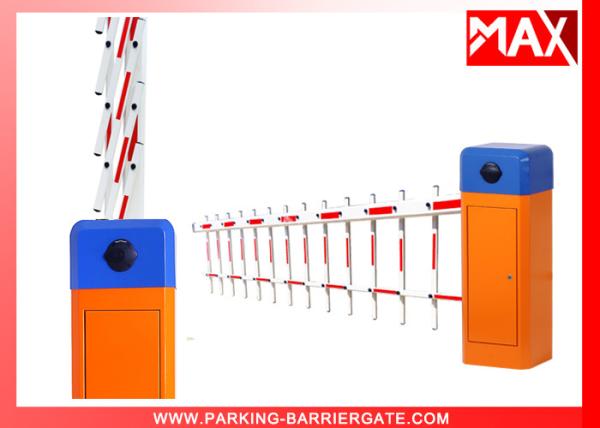

Automatic Driveway Barrier Gates / Car Parking Boom Barrier Gate IP44 Grade
Barrier Gate
Torque motor,steady,low noise,free maintenance
100% duty cycle,heavy duty
Automatic fault-detect
5 million MTBF
Intelligent Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle at highway,shopping center, exhibition center, hospitals, airports etc.
Quick Details
| Name |
Automatic Barrier Gate |
Application |
Parking System |
| Speed |
1/1.8/3/6 second |
Feature |
Manual release |
| Rated Power |
80W |
Certificate |
CE, ISO, SGS |
| Net Weight |
60KG |
Voltage |
AC220V, AC110V |
Technical Specifications
| Product Name |
IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates |
| Model |
MX-50B |
| Size |
350*280*920mm |
| Rating Voltage |
AC 220/110V ±10%, 50/60Hz |
| Color |
yellow,orange,blue,red,black,customized |
| Motor Power |
80w |
| Speed Option |
1s1.8s; 3s; 6s |
| Material |
2.0mm galvanized plate or cold roll plate with epoxy paint |
| Weight |
55 KG |
| Operation Testing |
More than 5 million times |
| Arm Option |
Straight arm, 1-6 m for option, 45*80mm or 45*100mm
Folding arm, 1-4.5 m for option, 90 degree or 180 degree
Fence arm, 1-5m for option, two fence or three fence
|
| Working Temperature |
-45°C — +75°C |
| Remote Control Distance |
Less than 30m |
| Application |
Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center |
What's the features and functions of barrier gate?
--Manual release available if meet power failure
--Machine core with compression spring, effectively avoids the accidents caused by spring breaking
--Die-casting aluminum alloy motor, precision and good for thermal radiating
--Motor cooling fan, solving the problem of heat-protection
--Double safety limit switches (photoelectricity limit switch/motor memory sensor)
--Reversing on obstacle
--Traffic light interface
--Wire control (switch signal) / Remote control
--RS485 communication module (optional)
--Support the Infrared Photocell for anti-bumping function (optional)
--Support the Loop Detector for auto-closing & anti-bumping (optional)
