6 second Car Parking Barrier Gate for Hospital / Building / Government
MAX car parking barrier designed using innovative technology and manufactured with precision
machinery to guarantee satisfaction in quality and reliability for years to come.
MAX car parking barrier has been lab tested for more than 5 millions opening / closing and still without any degrade in performance.
No limit switch design minimizes mechanical wear and enchances barrier life time.
MX-60 model can use WONSUN 1st generation machine core
MX-60 model also offer a complete range of arm ( folding, fence and swing out )
Technical Data
| Model |
MX-60 (MAX 1st generation machine core) |
| Power |
80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel
varnish baking, 3 years without fading
|
| Running Time |
1s, 1.8s, 3s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
55Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy.
Folding arm: 90°folding arm / 180°folding arm, aluminum alloy
Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
|
| Related accessories |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block |
| Application |
infrared sensors, loop detectors,traffic light, UHF readers |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite
2. 7 years OEM/ODM experience
3. quick response for handling problems
|
| Our other products |
MAX has other products: tripod turnstiles, sliding gate motor,
flap barrier,swing gate motor,
pedestrian access control turnstiles and barriers,
and other related accessories.
|
Functions & Features
AC motor is strong and powerful,can easily lift up even with additional singnage installed on to the barrier arm . AC motor is maintenance free, as there is no carbon in the AC motor, Built in intelligent fan cool the motor during heavy usage.
MAX clutch device can be conveniently unlocked to manually open or close the arm without removing the whole top cover or body housing, Resulting in hassle free operation and all components inside the barrier body are safe from danger and vandalism.
Sturdy housing, Housing is made with 2.0 mm cold rolled steel sheet for extra durability to support longer arm. Housing body is coated with epoxy paint for weatherprof protection
Photoelectrical limit switch uses smart motor counter to auto detect open/close position for higher accuracy and better stability. No more mechianical wear and tear which causes the arm to tilts up or down
Arm auto reverse. Built in smart collision detection technology allows arm to auto reverse when hit with an obstacle during closing to prevent further scratches & dents on the vehicle. Optional photo beam allows arm to auto reverse earlier before hitting the vehicle..Optional rubber lining to protect the vehicle from further damages.
Arm swing out, Arm will swing out when hit directly by vehicle to avoid further damage on the vehicle.
European lever design, European lever design ensure smooth opening arm and reliable consistent performance for years to come.
Full spare part are manufactured by ourselves, All of the original spare parts are manufactured by ourselves that can make your barrier gate up deliver and running in shortest tirre possible.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
1 pair photocell( optional)
1 loop detector( optional)
1 RS485( optional)
| Our service: |
|
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which according to your detailed requirements.
5. Technical support and aftersales service, it is a long term relationship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
|
| FAQ |
|
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please check it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
|
Product Tags:
|
|

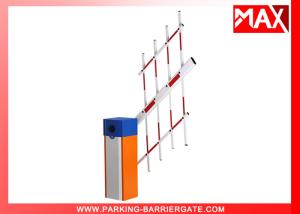

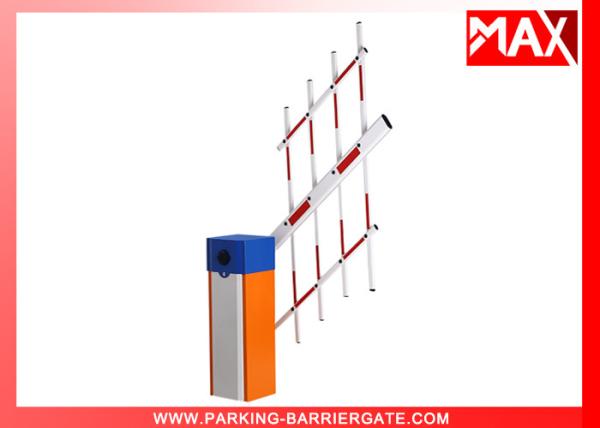

6 Second Automatic Vehicle Barrier for Hospital / Building / Government Images
|
