Technical data:
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Machine core N.W | 22.1kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |
Vehicle Barrier Gate Functions& Features:
1: Arm will automatically open when power off, no clutch design
When power on, barrier will automatically reset, restore to close state. If you have special need that manual intervention, it can
be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using
adjust the control board
2: a variety of input and output modes can be selected, often open and close can be selected.
3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.
4: Speed can be adjusted, 0.9s to 6s
5:all kinds of state signal output.
6: barrier gate running state OK signal output.
7: alarm signal output.
8: traffic lights signal relay output.
9: external Vehicle detection signal, infrared sensor signal.
10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available
24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)
11: the running noise is less than 60dB.
12: Power consumption: 50W, maximum power 100W.
13:It is also a simple matter to change the handing on-site from right-Hand to left-Hand.
14: automatically detect whether the balance spring fatigue or damage, if the spring
fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,
no need to use tools, hand can be replaced.
15: remote control open / close and car park system control open / close, separate
input, respectively, the number of corresponding statistics.
16: Inbuilt RS485 connected to PC of the parking system.

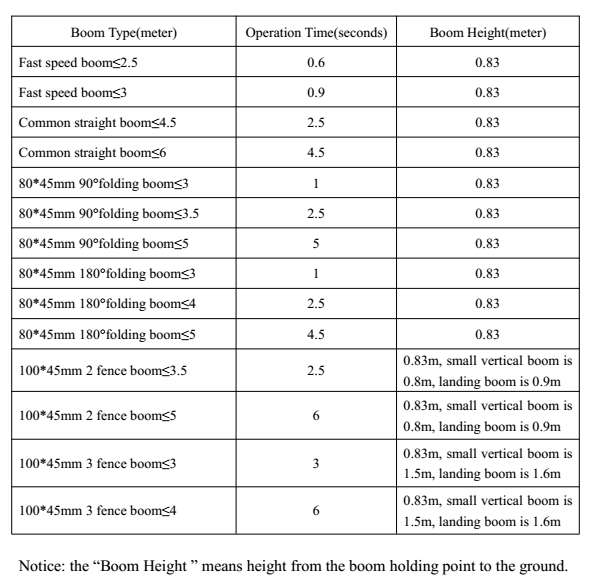

Operation Time and Boom Length Configuration Parameter
Packing list:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Machine case press board | | 2 | piece | For fixing case |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | | 1 | piece | Optional part |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | | 2 | unit | |
| Balance spring | | 1 | unit | For spare usage |
| Remote controller | | 2 | unit | |
| Machine control | | 1 | unit | Optional |
| Instruction | | 1 | piece | |
RFQ:
1.How about the after-sales service, how long the warranty? How to warranty?
The core part of the retractable door is motor, we are committed the motor's warranty is 2 years, other electronic parts is 1 year, we are specialized in manufacturing electric retractable gate and we have the strength to solve all your problems (In fact,quality of our products is quite stable, there is almost no rework problems within a few years)
2.How about the terms of payment?
Paid 30% of the sales proceeds as the advance payment,and the balance paid by T/T or L/C.
3. First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
