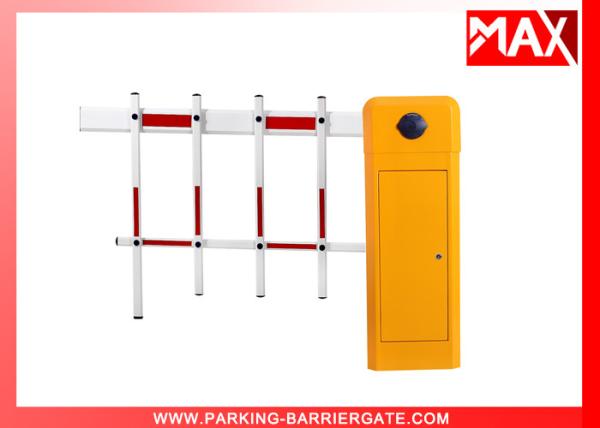

Remote Control Car Parking Barriers Gate Automatic Open and Close with 30M
Functions and features:
1. Manual release device to operate the barrier when power failure.
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.
3. Motor cooling fan to avoid the over-heating possbility.
4. Automatic reversing when the barrier boom meets the obstruction.
5. Auto closing realization through mean setting on the control panel.
6. The barrier works well with infrared photocells. Loop detector, card readers, ticket dispensers, manual switch(wire control), and traffic light.
7. RS485 communication module is compatible.
MAX car parking barriers remote control is designed using innovative technology and manufactured with precision
machinery toguaarantee satisfaction in quality and reliability for years to come.
MAX car parking barriers remote control has been lab tested for more than 5 millions opening / closing and still without any degrade in performance. No limit switch design minimizes mechanical wear and enchances barrier life time.
MX-50 series also offer a complete range of arm ( folding, fence and swing out)
Description
| Type |
MX-50;MX-50B; MX-60; MX-70. MX-80, MX-90,
MX-20,MX-21,MX-22,MX-23 ,MX-24,MX-25
|
| Operation time |
1s, 1.8s, 3s,4s,6s. Customized |
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
|
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
|
| Size |
320*280*935 mm |
| Spring And Bearing |
Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power |
120W |
| Rating Voltage |
AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance |
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size |
1020*375*467mm , with seven layers carton case
inside with air bubble film for protection
|
| G.W |
50 KG |
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
|
| Payment |
Sample: full payment
Order: usually 40% advance deposite, balance before shipment
|
| Advantages |
1. Professional Manfacturer for more 8 years
2. Mould Production, High Accuracy
3. Heat Treatment, more durable than normal
4. Better Service from Professional Work Team
|
| Application |
Suitable for indoor as well as outdoor parking area at airport, shopping mall,
warehouse,hotel, factories, condominium, car rental companies, etc. It can
also be customized to beused together with any auto-pay ticketing parking
or access control system
|
| Car Parking Barriers Functions and Features |
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional) |
| Car Parking Barriers Optional |
|
1. Straight boom arm length is 1-6 m, Speed time is 6S
2. Straight boom arm length is 1-4.5m. Speed time is 1.8s
3. Straight boom arm length is 1-3 m, Speed time is 1s
|
| Our Services |
|
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
|
Product Tags:
|
|
Remote Control Car Park Barriers Gate Automatic Open and Close with 30M Images
|
